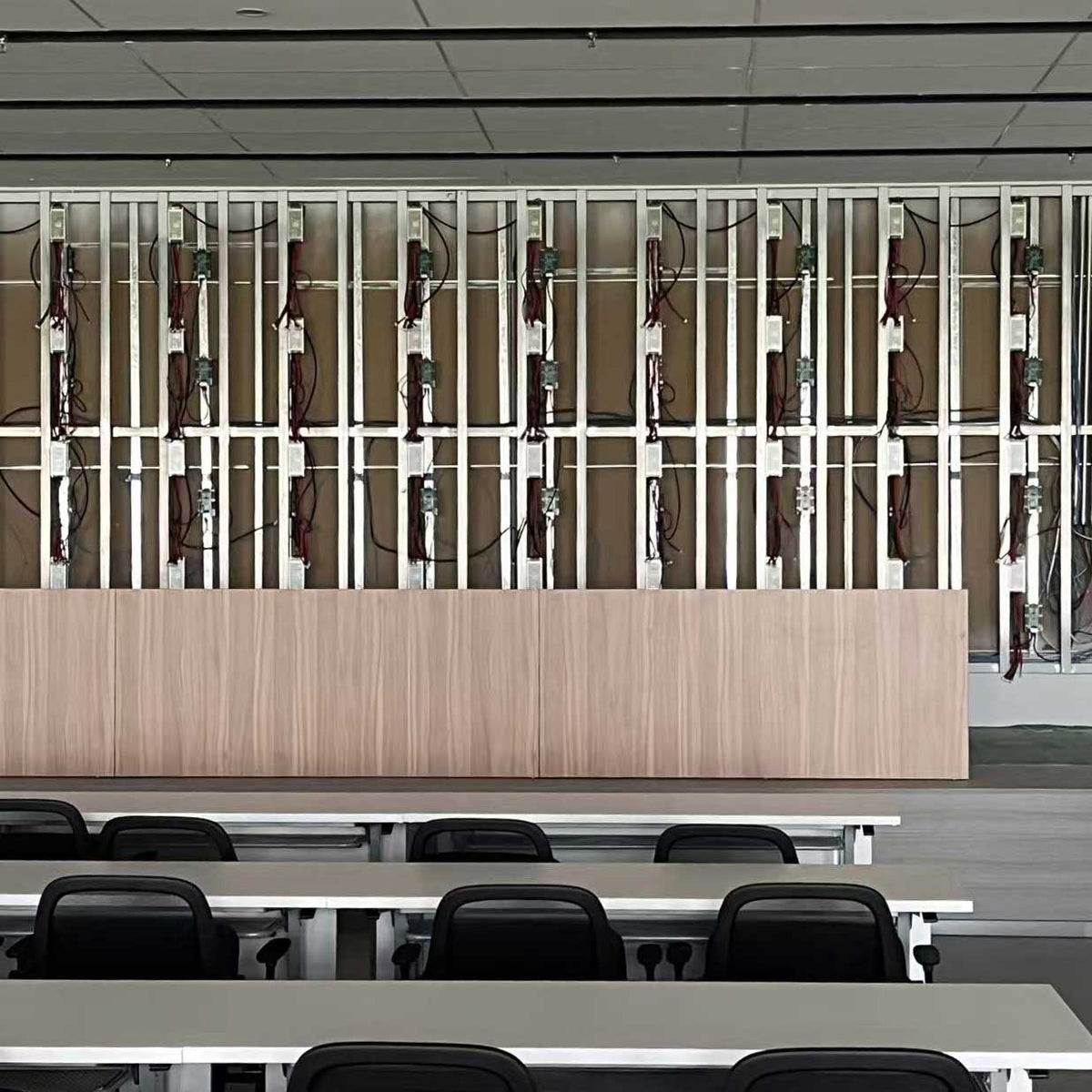

Two installation methods: Module‑mounting and Cabinet‑mounting.

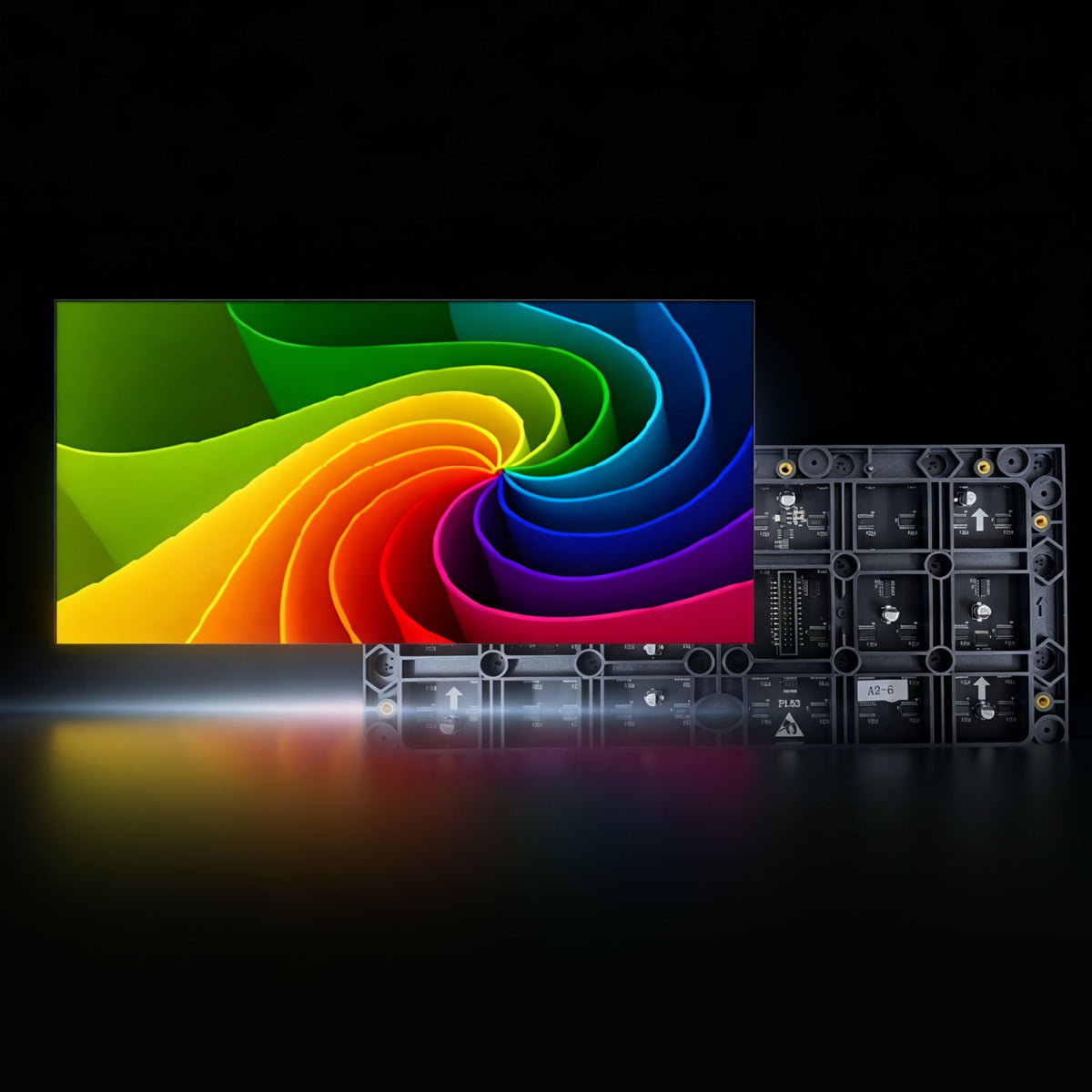

Standard channel module size: 320*160 mm
Module thickness: approx. 14.3 mm
Universal structural mounting holes for mainstream market structures

Enhanced HUB320 interface with lamp‑board calibration data storage support.
Seamless drop‑in replacement for SMD channel modules.

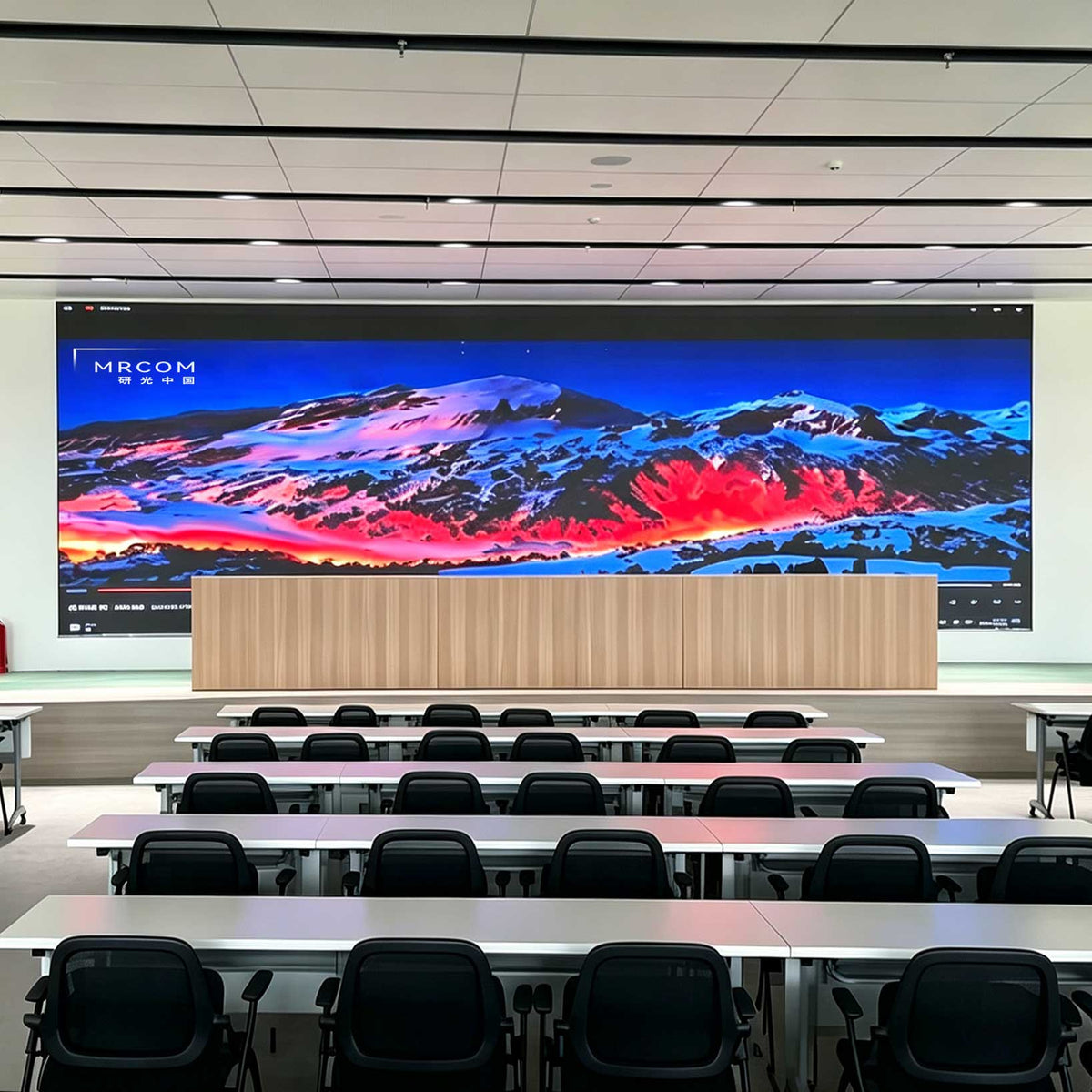

Our LED display offers multiple standard cabinet sizes for diverse installation environments and project scales, balancing assembly efficiency and visual performance.

Optional cabinet sizes:
320*480 mm, 320*640 mm, 640*480 mm, 640*640 mm.

Whether for precise display in compact spaces or large‑area seamless splicing, standardized cabinets enable fast adaptation to easily deliver your various display solutions.
